Professional 3-Axis Milling Service

We deliver 3-Axis Milling Service with ±0.01mm tolerances using advanced CNC centers and certified technicians. Optimized for prototypes to production runs in 50+ materials—from automotive alloys to engineering plastics—with real-time quality monitoring. Request your free quote today (24-hour response, ISO 9001 certified).

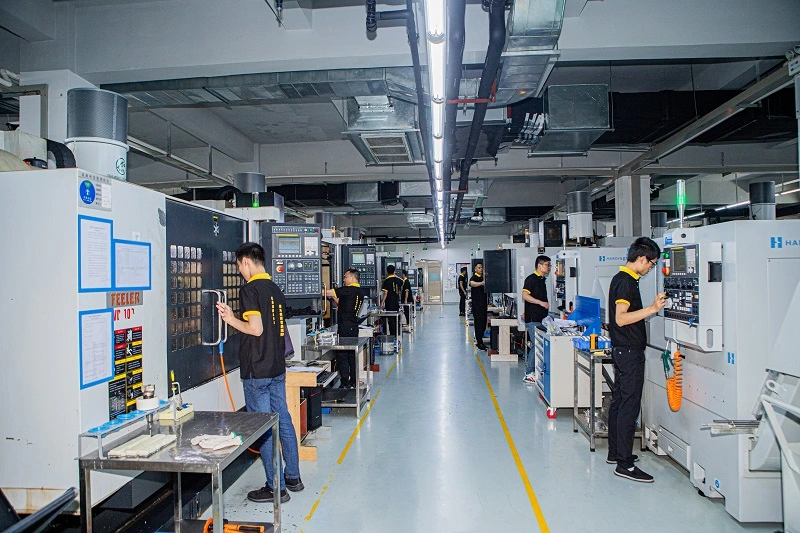

3-axis CNC milling process

3-Axis Machining Core

3-axis CNC milling operates through coordinated movement along three orthogonal axes:

  • X-Axis Longitudinal motion (±800mm travel)
  • Y-AxisTransverse motion (±500mm travel)
  • Z-AxisVertical spindle movement (±300mm travel)
Axis TravelISO 10791-1
X:800 Y:500 Z:300mm
Positioning AccuracyVDI/DGQ 3441
±0.003mm
Max Chip LoadAluminum 6061
0.25mm/tooth

Spindle Torque

120 Nm

Rigidity

22 N/μm

Triaxial Motion Control

Enables creation of complex geometries through synchronized axis movements:

  • Planar Machining

    XY-plane contouring with G17 active

  • Linear Guideways

    45mm roller-type guides with 0.005mm/m straightness

  • Feed Drive System

    AC servo motors with 0.8μm/rev resolution

  • Cooling System

    Through-spindle coolant at 1000psi

Control Features

  • G18/G19 plane selection
  • Cutter radius compensation
  • Helical interpolation

Tooling

  • HSK-63 tool interface
  • 24-tool automatic changer
  • Balanced G6.3 holders

3-Axis CNC Milling Advantages

Cost-Effective Solution

Ideal for low-to-medium volume production with minimal setup costs. Perfect for prototypes, jigs, and fixtures where complex 3D geometries aren't required.

Rapid Turnaround Time

Faster programming and machining cycles compared to 5-axis systems. Typical lead times: 3-5 business days for prototypes, 7-10 days for production runs.

Diverse Material Support

Works with 50+ materials including aluminum, steel, titanium, ABS, Nylon, and PEEK. Maintains consistent precision across metals, plastics, and composites.

Design Flexibility

Handles 2D profiles, flat surfaces, slots, and simple 3D contours. Easily integrates with CAD models for quick design iterations.

Proven Reliability

Widely adopted in industries like automotive and electronics for its stable performance. ISO 9001 certified processes ensure repeatable accuracy.

High Precision Machining

Achieves tight tolerances up to ±0.01mm, ensuring parts meet strict engineering specifications. Advanced control systems and high - quality components contribute to accurate and consistent machining results.

3-Axis CNC Milling Limitations

Limited 3D Surface Machining

Primarily handles 2D profiles and simple 3D contours. Complex geometries like free-form surfaces (e.g., turbine blades, organic shapes) require 5-axis systems for full machining.

Multiple Setup Requirements

Parts with features on multiple sides require manual repositioning or additional fixtures, increasing setup time and potential for positional errors.

Tool Path Restrictions

Tool axis remains vertical, limiting access to undercuts and deep cavities. Requires smaller end mills for intricate features, which may reduce material removal rates.

Surface Finish Limitations

Standard finish is Ra 1.6μm (0.063"), which may require secondary operations (grinding, polishing) for applications needing mirror finishes (Ra < 0.8μm).

Lower Material Removal Rate

Less efficient than 5-axis for heavy roughing of large workpieces due to single-directional cutting motion. Optimal for moderate material removal in prismatic parts.

Complex Contour Limitations

Struggles with simultaneous multi-axis motion required for helical interpolations and compound angles, which are standard in high-precision aerospace components.

Ready to Discuss Your 3-Axis Milling Project?

Transform your concept into reality with our fast, precise CNC machining and production services.
