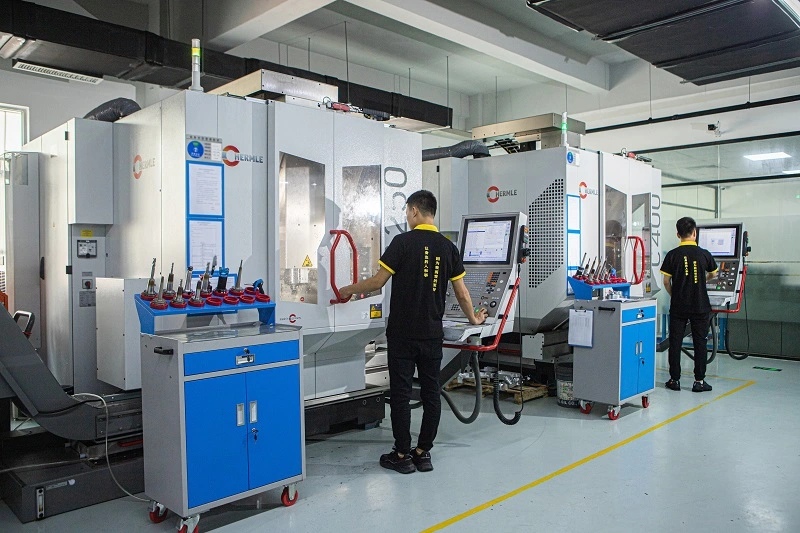

Advanced 5-Axis CNC Machining Service
Our 5 axis CNC machining service delivers exceptional precision for intricate geometries, maintaining ±0.003mm tolerance. We specialize in aerospace parts, medical implants, and high-precision prototypes, with our multi-axis capabilities reducing setup times by 40%.
5-Axis Machining Core Technology

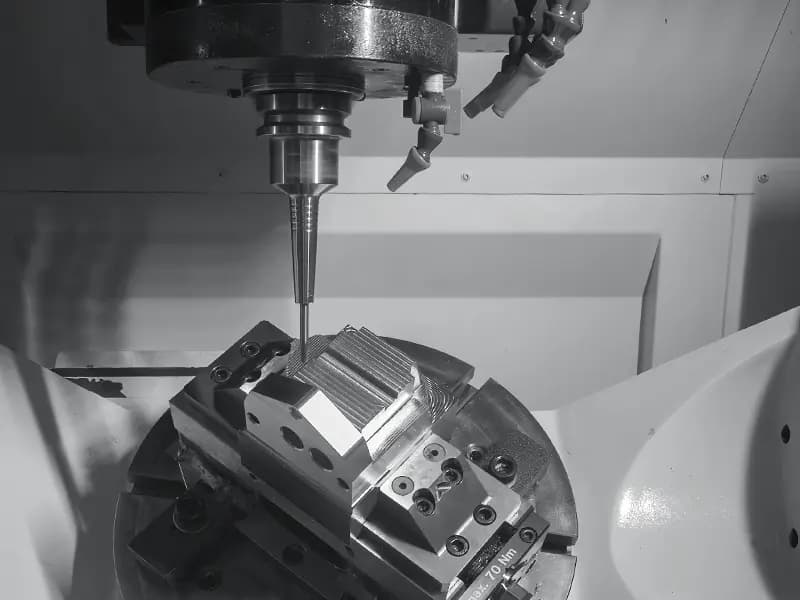

5-axis CNC machining integrates three linear axes (X/Y/Z) with two rotational axes (A/B or B/C), enabling simultaneous motion for complex surface machining:
- Rotational AxesA-axis (±120° tilt), B-axis (360° rotation)
- Tool OrientationAdjustable spindle angles for optimal cutter engagement
Rapid Traverse
40 m/min
Tool Change Time
2.5 seconds
Multi-Axis Motion Control
Enables full 3D surface machining with minimal setup:
- Simultaneous 5X Movement
Creates complex curves, undercuts, and free-form surfaces in a single setup
- Tool Path Optimization
Reduces air cutting by 30% through adaptive cutter orientation
Key Technologies
- • High-torque direct-drive motors
- • Thermal error compensation
- • 3D tool radius compensation
Typical Tools
- • Ball end mills (1-20mm diameter)
- • Torque tools for heavy cutting
- • Diamond-tipped cutters for precision finishes
5-Axis Machining Advantages
Complex Geometry Mastery
Precisely machines organic shapes, turbine blades, and medical implants that 3-axis systems can’t handle.
Reduced Setup Time
Complete multi-surface machining in 1-2 setups vs. 4-5 setups for 3-axis, cutting lead times by 40%.
Enhanced Surface Finish
Achieves Ra 0.8μm standard finish, eliminating secondary polishing for most applications.
Material Efficiency
Minimizes material waste through optimized tool paths for expensive alloys like titanium.
Design Freedom
Supports intricate details and undercuts without feature limitations of 3-axis.
Industry-Leading Precision
±0.003mm tolerance meets aerospace and medical device certification requirements.
5-Axis Machining Considerations
Higher Initial Cost
Machine and tooling investments are 30-50% higher than 3-axis systems.
Complex Programming
Requires advanced CAM software and skilled programmers for multi-axis tool paths.
Maintenance Requirements
Regular calibration of rotational axes to maintain precision tolerances.
Ready to Machine Your Complex Design?
Leverage our 5-axis expertise for precision components in aerospace, medical, and automotive industries.
